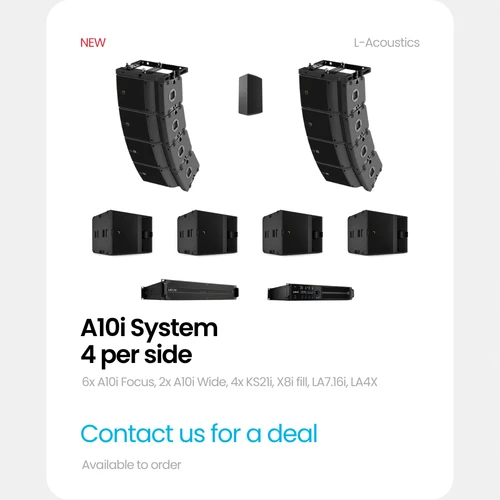

A complete L-Acoustics installation system built around A10i constant curvature line sources, with KS21i subwoofers, an X8i centre fill and an LA7.16i amplified controller, plus an LA4X for the subs on the larger 4 sub systems. Choose the array size and sub count that suits your room. Designed, supplied and installed by Forefront Productions.
Who it's for
Churches, auditoriums and performance spaces from around 150 to 1500 seats. A10i throws up to 45 m, which is the distance from the speakers to the furthest seat. Wide rooms can take extra arrays, so seat count is a guide and the shape of the room matters more.
Configurations
- 3x A10i per side, 2x KS21i: a strong starting point for spoken word and traditional services
- 3x A10i per side, 4x KS21i: more low end for contemporary worship, with a cardioid sub option
- 4x A10i per side, 2x KS21i: longer throw for deeper rooms
- 4x A10i per side, 4x KS21i: deeper rooms and a full band, with a cardioid sub option
- 5x A10i per side, 4x KS21i: our largest A10i system, for big rooms, with a cardioid sub option
Cardioid subs
With 4 KS21i grouped together, one sub can be turned to face backwards and run on its own amp channel. That cancels low end behind the subs, so the stage stays clean for the band and the worship leader while the congregation still gets the full weight. Every 4 sub configuration has the amp channels to do it.
What's included in every configuration
- A10i Focus line sources with an A10i Wide at the bottom of each array
- KS21i 21 inch subwoofers
- 1 x X8i coaxial centre fill for the front rows
- 1 x LA7.16i 16 channel amplified controller, one channel per speaker at full output, plus 1 x LA4X for the subs on the 4 and 5 per side, 4 sub systems
- All rigging plates, plus an A10i Bump flying frame per side
- VBAR and TILT for ceiling mounting the centre fill
- Speaker cable with Neutrik speakON and XLR connectors
Forefront Tip
We model every room in Soundvision before we lock in a configuration, so you get the box count that actually covers your seats, not a guess. Every venue is different, so contact us for a quote and a system design to suit your room.
