Overview
The MX6 is the mid sized surface mount speaker in Quest's MX Series and the one to reach for first on most indoor and outdoor jobs. A 6 inch woofer and 1 inch dome tweeter sit in a compact ASA cabinet with a corrosion resistant powder coated aluminium grille, rated IP55, or IP65 with the included weatherproof connector cover.
It runs at 16 ohm or on a 100V line with taps at 10, 20, 30 and 40 W, so it works on a low impedance amplifier in a cafe or a 100V run around a school courtyard. It suits alfresco dining, pool decks, sports courts, church outdoor areas and covered walkways. The UB1X wall bracket is included, the UB2X ceiling bracket is optional. Available in black or white.
Highlights
- 6 inch woofer and 1 inch dome tweeter, 108 dB maximum SPL
- 16 ohm or 100V operation with 10, 20, 30 and 40 W taps
- IP55, or IP65 with the included connector cover
- UV resistant ASA cabinet, powder coated aluminium grille

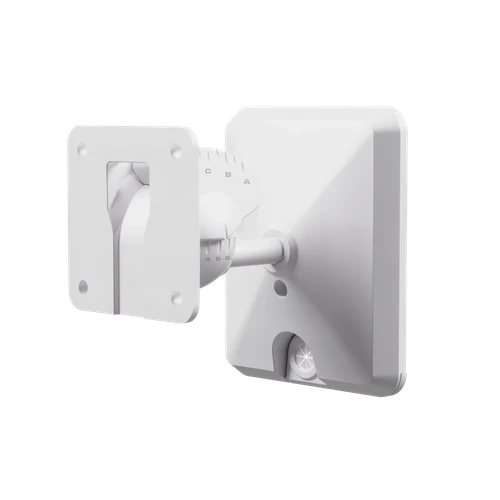

- UB1X wall bracket included, UB2X ceiling bracket optional
- Voiced to match the MX ceiling, pendant and subwoofer models
- Available in black or white
Specifications
| Frequency response (-6 dB) | 90 Hz to 20 kHz |
| Sensitivity (1 W, 1 m) | 86 dB |
| Max SPL | 108 dB |
| Power handling | 60 W RMS, 120 W peak |
| Impedance | 16 ohm |
| 100V taps | 10 / 20 / 30 / 40 W |
| Transducers | 1 inch dome tweeter, 6 inch woofer |
| Dispersion | 150 x 125 degrees |
| Weather rating | IP55, IP65 with connector cover |
| Dimensions (H x W x D) | 308 x 183 x 211 mm |
| Weight | 4.0 kg |
| Included | UB1X wall bracket, connector covers, Euroblock |
Forefront Tip
For outdoor dining, more speakers at lower level beats two loud ones. Space MX6s so the coverage overlaps, run them on a low 100V tap and fit the weatherproof connector covers, then the music stays even across the area without blasting the nearest table.
