Overview
The Quest Qi10 is a two-way 10 inch installation loudspeaker that sits between the Qi8 and Qi12 in the Qi Series. A 1 inch compression driver on a rotatable 90 x 70 degree horn is matched to a 10 inch woofer, giving response down to 55 Hz and 125.4 dB maximum SPL from 300 W RMS at 8 ohm.
The rotatable horn keeps coverage consistent whether the cabinet is hung horizontally or mounted vertically on a wall beside a stage, and the marine plywood cabinet with steel mesh grille looks tidy in architectural spaces. It suits church auditoriums, school halls, function rooms, larger bars and live venues that want front of house performance from a discreet box. Available in black or white.
Highlights
- 1 inch compression driver and 10 inch woofer
- Rotatable 90 x 70 degree horn
- 300 W RMS, 600 W peak, 8 ohm
- 125.4 dB max SPL, response down to 55 Hz
- Marine plywood cabinet with polyurea coating
- HBRQi10 and VBRQi10 brackets available
- DSP presets in Quest QXD amplifiers
- Available in black or white
Specifications
| Frequency response (-6 dB) | 55 Hz to 20 kHz |
| Sensitivity | 94.6 dB (1 W / 1 m) |
| Max SPL | 125.4 dB |
| Power handling | 300 W RMS, 600 W peak |
| Impedance | 8 ohm |
| Drivers | 1 inch compression driver, 10 inch woofer |
| Dispersion | 90 x 70 degrees, rotatable horn |
| Cabinet | Marine plywood, polyurea coating |
| Grille | Steel mesh |

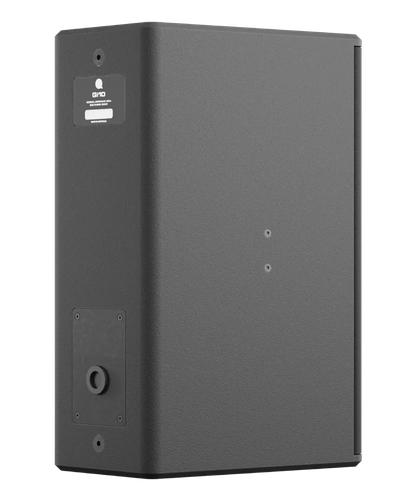

| Connections | 4 pin Euroblock in and thru |
| Dimensions | 540 x 300 x 332 mm (H x W x D) |
| Weight | 16.5 kg |
| Colours | Black (RAL 9004), white (RAL 9003) |
Forefront Tip
Rotate the horn to match the way the box is mounted before it goes up, so the wide 90 degree pattern runs across the audience and the 70 degree pattern runs front to back. Drive it from a QXD amplifier and load the Qi10 preset, then add a Qi12S or Qi18S if the room will host bands or DJs.
