Overview

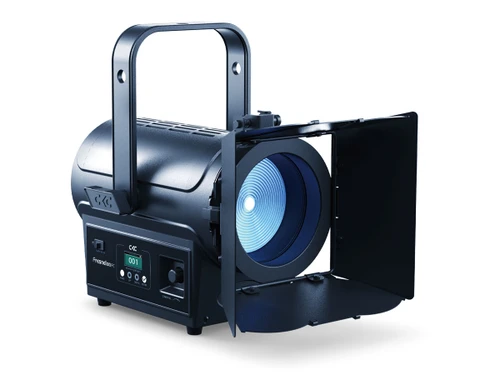

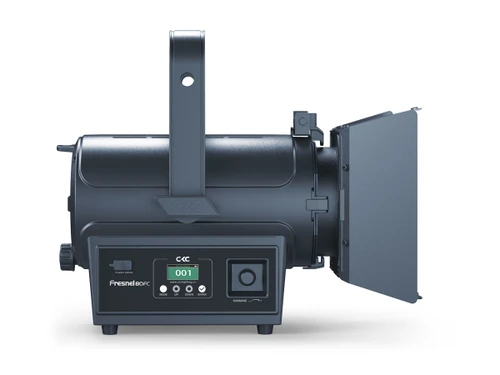

The CKC Lighting Studio Fresnel 180TW is a 400 W full colour LED fresnel with a six colour RGBALC engine and tunable white from 1800K to 8000K at CRI 94. It produces a high output, even soft edged wash, with a beam angle that zooms from 13 to 46 degrees.
Built for the tunable white needs of film and TV, it is just as useful as a stage front wash for churches, theatres, schools and livestream studios that need to match cameras and room lighting. A virtual gel library, 16 bit dimming, an adjustable LED refresh rate and a barn door make it a complete front light.
Highlights
- 400 W RGBALC six colour LED engine
- Tunable white from 1800K to 8000K, CRI 94
- Beam angle 13 to 46 degrees
- Virtual gel library
- 16 bit dimming curves
- LED refresh rate 900 Hz to 25 kHz for camera work
- Barn door included
Specifications
| Light source | 400 W RGBALC LED |
| Colour temperature | 1800K to 8000K |
| CRI | 94 |
| Beam angle | 13 to 46 degrees |
| Field angle | 25 to 60 degrees |
| Control | 3 and 5-pin DMX in/out with RDM, 4 channel modes |
| Display | OLED menu with 3 adjustment encoders |
| Power | 110 to 240 VAC, 50/60 Hz |
| Power connector | TruCon in/out |
| Housing | Die cast aluminium |
| Dimensions | 306 x 301 x 370 mm (W x H x D) |
| Weight | 8.4 kg |
| Included | Barn door |
Forefront Tip
Set the colour temperature to match your cameras or house lights first, then use the gel library for warmer or tinted looks. For livestreams, raise the LED refresh rate in the menu to avoid flicker on camera, and cross focus from the front of house bar for an even face light.
