Fix your stage light with a complete front wash kit built around the CKC Lighting Studio Fresnel 350TW. Fresnels are purpose built to make people look good, with a soft edged beam and full tunable white, so you can dial in warm stage tones or a cooler, camera friendly white. This kit is matched to venues where the lighting bar is more than 6 m from the stage.
What is in the kit

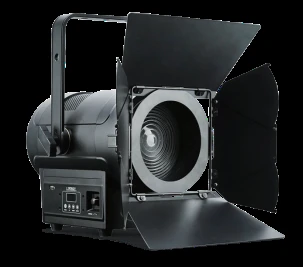

- 3, 5 or 7 x CKC Lighting Studio Fresnel 350TW
- 1 x Darke Quick Rig Clamp per fresnel

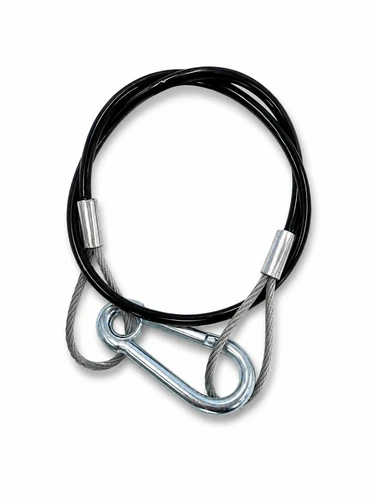

- 1 x Darke 3 mm Safety Wire per fresnel

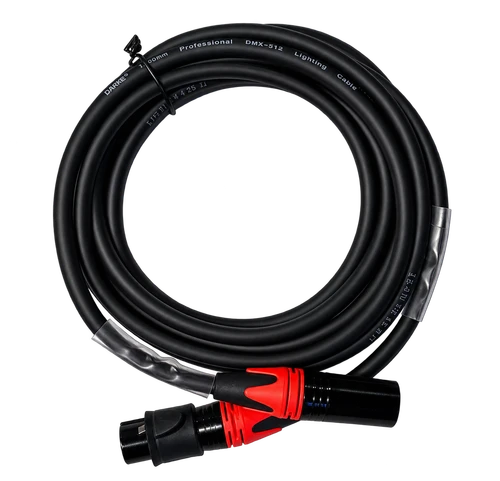

- 1 x Darke IP67 5 pin DMX Cable 3 m per fresnel, for linking along the bar

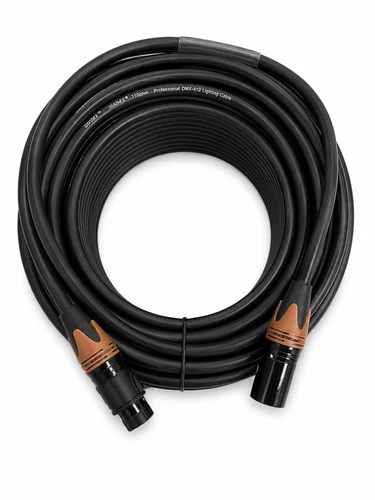

- 1 x Darke IP67 5 pin DMX Cable 30 m, to run DMX from your lighting desk to the bar
Which kit suits my venue?
- Lighting bar 4 m or less from the stage: Studio Fresnel 150TW
- Lighting bar up to 6 m from the stage: Studio Fresnel 180TW
- Lighting bar more than 6 m from the stage: Studio Fresnel 350TW
How many fresnels?
We always use an odd number, so there is a fixture in the centre of the bar that doubles as a special for a presenter, MC or worship leader. As a rough guide, 3 suits a small stage, 5 a medium stage and 7 a wider stage. Overlap each beam with its neighbour by around 20 to 30 percent so there are no hot spots as people move across the stage.
Forefront Tip
Position the bar so the light hits the stage at roughly 45 degrees. Too low and you blind the people on stage, too high and you get dark shadows in the eye sockets and under the chin. Having enough fixtures means you are not running them flat out, which leaves headroom when the camera or livestream team asks for more light. Power cabling is not included, so talk to us about the best power solution for your bar.
