Overview
The Qi12 is Quest's high output 12 inch point source for installed sound in churches, auditoriums, live venues, large function rooms and school performance spaces. A 1.4 inch compression driver on a rotatable 80 x 50 degree horn gives tighter control for longer throws and reverberant rooms, and the 12 inch woofer takes it to 127.2 dB maximum SPL with response down to 60 Hz.

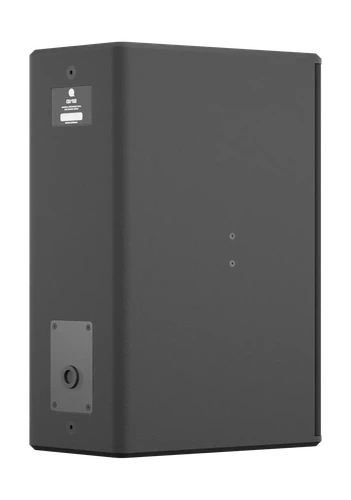

A bi-amp/passive switch lets you run it full range on one amplifier channel or split it across two channels of a Quest QXD. The marine plywood cabinet has a polyurea coating and steel mesh grille, so it looks like part of the building. Mount it with the HBRQi12 or VBRQi12 bracket. For outdoor use, see the Qi12E. Available in black or white.
Highlights
- 1.4 inch compression driver on a rotatable 80 x 50 degree horn
- 12 inch woofer, 300 W RMS, 8 ohm
- 127.2 dB maximum SPL, response down to 60 Hz
- Bi-amp/passive switch
- Marine plywood cabinet with polyurea coating and steel mesh grille

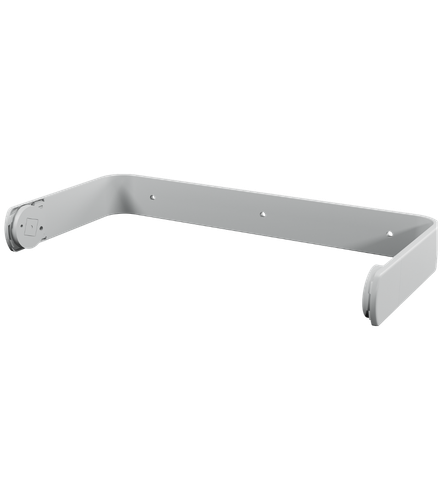

- HBRQi12 and VBRQi12 brackets in matching colours
- Available in black or white
Specifications
| Frequency response (-6 dB) | 60 Hz to 18 kHz |
| Sensitivity (1 W, 1 m) | 96.4 dB |
| Max SPL | 127.2 dB |
| Power handling | 300 W RMS, 600 W peak |
| Impedance | 8 ohm |
| Operation | Passive or bi-amp, switchable |
| Transducers | 1.4 inch compression driver, 12 inch woofer |
| Dispersion | 80 x 50 degrees, rotatable horn |
| Connection | 4 pin Euroblock, in and thru |
| Cabinet | Marine plywood, polyurea coating |
| Dimensions (H x W x D) | 620 x 360 x 398 mm |
| Weight | 24.8 kg |
| Colours | Black (RAL 9004), white (RAL 9003) |
Forefront Tip
The narrower 80 x 50 degree pattern helps a lot in echoey rooms, so aim it at the seats and keep it off the side walls and ceiling. For a band or worship team, add a Qi12S or Qi18S subwoofer and let a QXD amplifier preset handle the crossover.
