Overview
The Qi8 is the workhorse of Quest's Qi Series: an 8 inch two way point source for larger restaurants, lounges, retail floors, school halls, church auditoriums and multipurpose rooms. A 1 inch compression driver on a rotatable 90 x 70 degree horn sits over an 8 inch woofer in a marine plywood cabinet with polyurea coating.

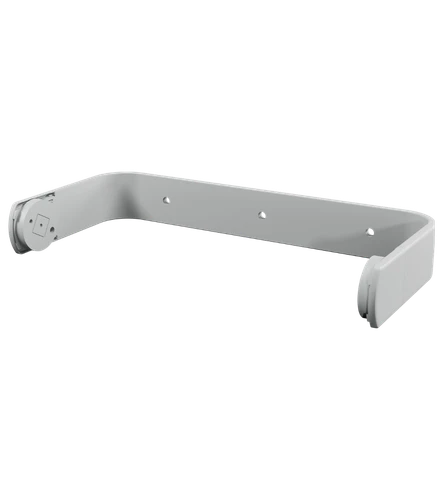

At 8 ohm and 200 W RMS, with 123.2 dB maximum SPL, a pair on a Quest QX or QXD amplifier handles speech and music in a medium room, and a distributed set covers a large hall. Mount it with the HBRQi8, VBRQi8 or WMQi8, add a Qi12S for low end, or choose the Qi8E for outdoors. Available in black or white.
Highlights
- 1 inch compression driver on a rotatable 90 x 70 degree horn
- 8 inch woofer, 200 W RMS, 8 ohm
- 123.2 dB maximum SPL, response down to 60 Hz
- Marine plywood cabinet with polyurea coating and steel mesh grille
- 4 pin Euroblock in and thru
- HBRQi8, VBRQi8 and WMQi8 mounts in matching colours
- Available in black or white
Specifications
| Frequency response (-6 dB) | 60 Hz to 20 kHz |
| Sensitivity (1 W, 1 m) | 94.1 dB |
| Max SPL | 123.2 dB |
| Power handling | 200 W RMS, 400 W peak |
| Impedance | 8 ohm |
| Transducers | 1 inch compression driver, 8 inch woofer |
| Dispersion | 90 x 70 degrees, rotatable horn |

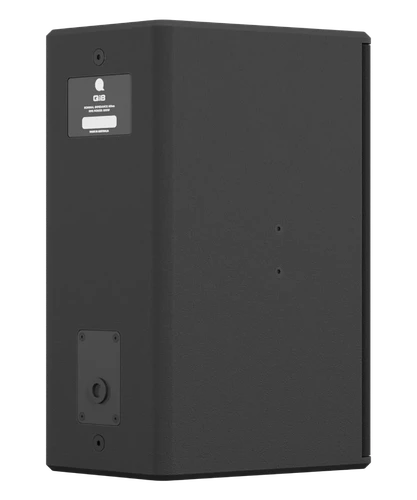

| Connection | 4 pin Euroblock, in and thru |
| Cabinet | Marine plywood, polyurea coating |
| Dimensions (H x W x D) | 440 x 270 x 270 mm |
| Weight | 11.1 kg |
| Colours | Black (RAL 9004), white (RAL 9003) |
Forefront Tip
In a long hall, a front pair plus a delayed pair halfway back sounds clearer than one pair turned up loud. Run the Qi8 from a QXD amplifier so you can set the delay and preset in one place, and use Qi8E on any outdoor area so the sound matches.
