Overview
The ME-1 gives each performer their own monitor mix: up to 40 sources over a single Cat5 cable, with 16 assignable keys for single sources or groups built on the ME-1 itself, so you do not burn console buses. A dimmable OLED screen shows names, levels, pans and meters, and channel names and stereo links come straight from compatible Allen & Heath mixers.
Each ME-1 stores 16 presets that can be saved to USB and carried to another unit. There is a master 3 band EQ, a limiter, solo and mute keys, an aux input for click or backing tracks and a built in ambient mic for hearing the room. Headphone outputs on quarter inch and 3.5 mm drive all common earphones. Power by mains adaptor or PoE, and daisy chain units or run them from an ME-U hub.
Highlights
- Up to 40 sources over one Cat5 cable, 48kHz
- 16 assignable keys, groups built on the unit
- 16 presets, save and move via USB
- OLED display with names, levels, pans and meters
- 3 band EQ, limiter, ambient mic and aux input
- PoE (802.3af/at) or 12V PSU, mic stand bracket included
Compatibility
Works with:
- dLive MixRack (ME port), with names picked up automatically

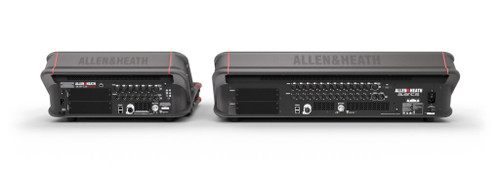

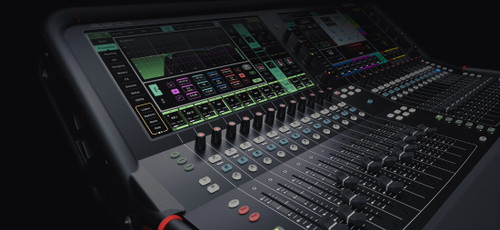

- Avantis and Avantis Solo (SLink, or GX4816 DX2 port)
- SQ-5, SQ-6, SQ-7, SQ5+, SQ6+, SQ7+, SQ-Rack (SLink, AR2412 or AB168 port, or GX4816 DX2)
- Qu mixers (dSNAKE or SLink port) and legacy GLD
- Third party consoles via ME-U with M-DANTE or M-MADI card, or DiGiCo with DMI-ME
- Aviom A-Net 16 sources; can replace Aviom A-16ii units
Specifications
| Sources | Up to 40, 48kHz 24 bit |
| Keys | 16 assignable plus solo, mute |
| Presets | 16, saveable to USB |
| Display | Dimmable OLED |
| Processing | 3 band master EQ, limiter -24 to 0 dB |
| Outputs | 1/4 inch and 3.5 mm headphones, 1/4 inch mono out |
| Network | 2 x locking EtherCon (in, thru) |
| Power | PoE 802.3af/at or 12V DC 1.25A PSU |
| Dimensions | 230 x 160 x 70 mm |
| Weight | 1.1 kg |
Forefront Tip
More than two or three ME-1s? Use an ME-U hub so every unit gets PoE and a home run. In a daisy chain only the first unit can be PoE powered; the rest need their own PSUs.
