Overview
M-SQ-MADI is the 64x64 MADI interface for the I/O Port on Allen & Heath SQ mixers and AHM processors. It has two BNC inputs and two BNC outputs for split or redundant MADI links, plus a dual function BNC word clock connector so the console can sync to, or clock, other equipment. It runs at 48kHz or 96kHz. Use it to connect to broadcast trucks, recording systems and third party consoles over coax, where MADI is still the common language.
Highlights
- 64 x 64 MADI channels
- 48kHz or 96kHz
- 2 x BNC in, 2 x BNC out, split or redundant
- Dual function BNC word clock
- Talks to broadcast, recording and third party consoles
Compatibility

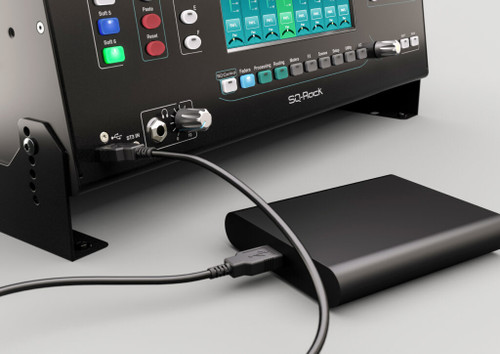

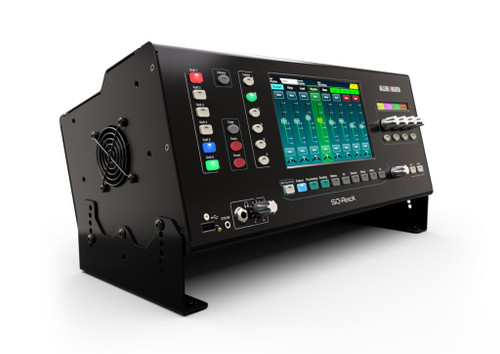

Works with: SQ-5, SQ-6, SQ-7, SQ5+, SQ6+, SQ7+ and SQ-Rack (one I/O Port per mixer), plus the AHM-16, AHM-32 and AHM-64 matrix processors.
Specifications
| Format | MADI (coax) |
| Channels | 64 in x 64 out |
| Sample rate | 48kHz or 96kHz |
| Connectors | 2 x BNC in, 2 x BNC out |
| Word clock | 1 x BNC, in or out |
| Slot | SQ / AHM I/O Port |
Forefront Tip
Agree the clock master with the truck or recording system before the show and use the BNC word clock if the far end wants it. Use 75 ohm coax for MADI runs.
