Overview

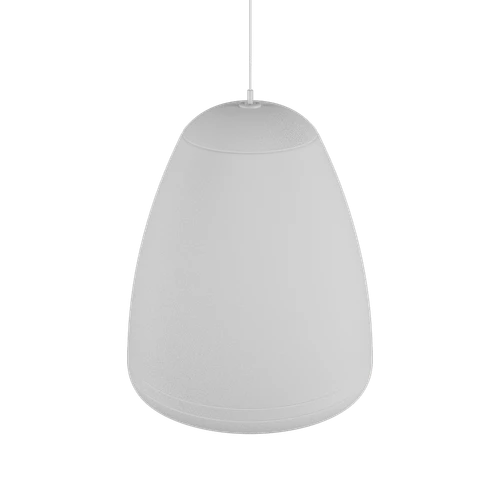

The MX4P is the compact pendant in Quest's MX Series, made for spaces with exposed ceilings, open trusses or services where a flush in-ceiling speaker is not an option. Think warehouse-style cafes, co-working spaces, retail fit-outs, converted church halls and modern office breakout areas. It hangs from a single point and gives even coverage over the floor below.
Inside is the same 4 inch die-cast aluminium woofer and 1 inch titanium dome tweeter as the MX4C ceiling speaker, so if your venue has a mix of plasterboard ceilings and open areas you can run MX4C and MX4P side by side and the sound will match. The ASA injection moulded housing has a rimless magnetic steel grille, a Euroblock in and thru connection for daisy chaining, and a safety cable point.
It is switchable between 16 ohm and 70V/100V operation, with 100V taps at 4, 8, 15 and 30 W and 70V taps at 2, 4, 8 and 15 W. Each pendant ships with grille and top hat and is available in black (RAL 9004) or white (RAL 9003); the white version may be priced differently. Pair it with a Quest QX or QXD amplifier, and add the MX subwoofer if the music needs more weight than a 4 inch driver can give.
Highlights
- Compact pendant for open ceilings, 220 mm high x 270 mm diameter, 3.3 kg
- Same 4 inch woofer and 1 inch tweeter as the MX4C ceiling speaker
- Selectable 16 ohm or 70V/100V operation with four taps each
- Rimless magnetic steel grille with top hat included
- Euroblock in and thru connection for daisy chaining pendants
- Safety cable attachment point
Specifications
| Frequency response (-6 dB) | 79 Hz to 20 kHz |
| Sensitivity | 86 dB |
| Max SPL | 104 dB |
| Power handling | 60 W RMS / 120 W peak |
| Nominal impedance | 16 ohm |
| 100V taps | 4 / 8 / 15 / 30 W |
| 70V taps | 2 / 4 / 8 / 15 W |
| Transducers | 1 inch dome tweeter, 4 inch woofer |
| Dispersion | 160 x 130 degrees |
| Dimensions | 220 mm high x 270 mm diameter |
| Weight | 3.3 kg |
| Included | Grille, top hat |
Forefront Productions is an authorised Quest Engineering dealer. We stock the range in Newcastle and ship Australia wide, and we are happy to help you spec a system or recommend the right amplifier and matching ceiling or surface models for the job.
