Overview
This bundle packages a full size Avantis console with the Avantis dPack software upgrade and the fitted Avantis dust cover (AVANTIS-DUSTCOVER). The console is the 24 fader, dual 15.6 inch touchscreen Avantis running the 96kHz XCVI engine from dLive with 0.7ms latency, 12 XLR inputs and outputs, AES, USB stereo recording and BNC word clock.
dPack lifts the mix engine from 64 inputs and 42 busses to 96 input channels and 56 busses, adds 24 Dyn8 dynamic EQ and multiband compression engines and unlocks the DEEP processing library: compressor emulations such as 16T, 16VU, Opto, OptTronik and PeakLimiter 76, the Dual Stage Valve Preamp, Source and Dual Threshold Expanders, and NEQ12 on the mix outputs. The dust cover is black water repellent polyester with a printed logo, cut for the Avantis frame. Two 128x128 I/O Ports and SLink take the dLive card range and Allen & Heath expanders. Because dPack is enabled, the console is ready for the M-AV-ULTRAFX RackUltra FX module whenever you want to add it.
Highlights
- Avantis console, AVANTIS-DPACK upgrade and AVANTIS-DUSTCOVER in one order
- 96 inputs and 56 busses with dPack
- 24 Dyn8 engines and DEEP processing library
- Dual 15.6 inch touchscreens, 24 faders
- Two 128x128 I/O Ports and SLink
- Ready for the M-AV-ULTRAFX module
Compatibility
Works with the full dLive and Avantis option card range in its two I/O Ports, SLink expanders (DX168, DX164-W, DX012, DX32, DX-HUB, GX4816), Dante expanders via a Dante card and ME personal mixing. Optional hardware upgrade: M-AV-ULTRAFX (dPack already included). Other accessories: AVANT-BRKT/X, AVANTIS-OV-CASE, AVANTIS-CASE.
- I/O Port cards (two slots, 128x128 at 96kHz each): dLive format cards including Dante 64x64 (M-DL-DANT64-AX), Dante 128x128 (M-DL-DANT128-AX), Waves V3 (M-DL-WAVES3-A), gigaACE (M-DL-GACE-A), fibreACE (M-DL-GOPT), superMADI (M-DL-SMADI-A), DX Link (M-DL-DXLINK), AES3 cards and the M-DL-ADAPT-A 48kHz adaptor

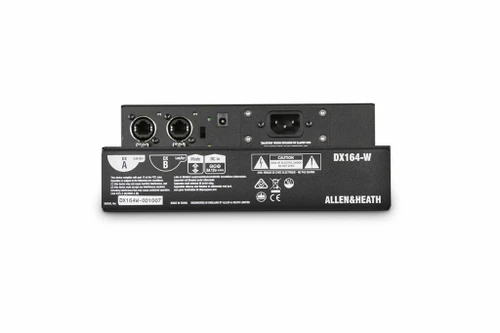

- SLink expanders: DX168, DX164-W, DX012, DX32, DX-HUB, GX4816, plus legacy AB1608, AR2412 and AR0804
- Dante expanders via a Dante card: DT168 and DT164-W
- ME-1 and ME-500 personal mixers and the ME-U hub
- IP1, IP6 and IP8 remotes, CC-7 and CC-10 Custom Control tablets, GPIO
Specifications
| Includes | Avantis console, dPack, Avantis dust cover |
| Processing | 96kHz XCVI FPGA, 0.7ms latency |
| Input channels | 96 with dPack |
| Busses | 56 configurable with dPack |
| Dynamics | 24 Dyn8, DEEP processing |
| FX | 12 RackExtra FX |
| Screens | 2 x 15.6 inch Full HD touch |
| Faders | 24 faders, 6 layers |
| Local I/O | 12 XLR in, 12 XLR out, AES |
| Expansion | 2 x I/O Port (128x128, 96kHz), SLink |
| Weight | 26 kg (console) |
Forefront Tip
If you are also likely to want the premium RackUltra FX, compare this bundle with the Avantis Ultra (AVANTIS-U), which has the module factory fitted and avoids a service centre install later.
Forefront Productions in Newcastle NSW is an authorised Allen & Heath dealer shipping Australia wide. For pricing call 02 4954 4771 or send us an enquiry, and we will help put the rest of the system together.
